Welded Gabion Baskets Retaining Structures beats the competition with faster erection time and baskets that last longer and keep their shape. Our weld gabions are made from prefabricated Class III zinc-coated 8, 9 or 11 gauge welded wire mesh fabric with a 50mmX50mm or 100mmX100mm spacing, and may be field cut to fit curves, culverts, or angles.
Welded Gabion Baskets Retaining Structures beats the competition with faster erection time and baskets that last longer and keep their shape. Our weld gabions are made from prefabricated Class III zinc-coated 8, 9 or 11 gauge welded wire mesh fabric with a 50mmX50mm or 100mmX100mm spacing, and may be field cut to fit curves, culverts, or angles.

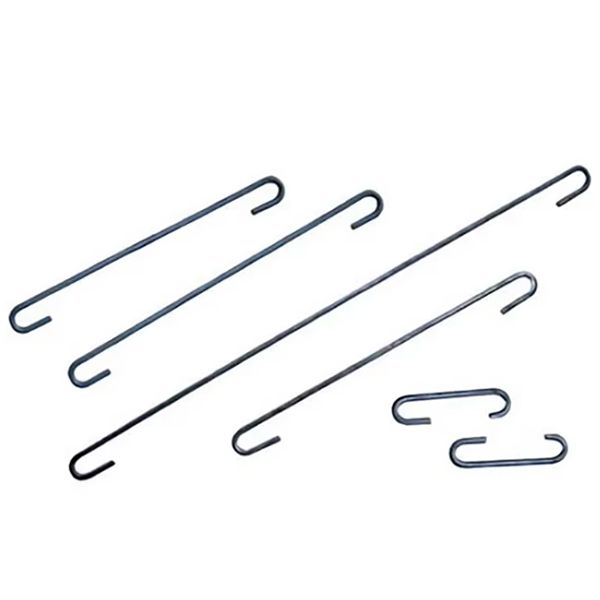

| Hooks * 3.5m-4.0mm hooks * 4pcs-9pcs per set * Strengthen the gabion cage |

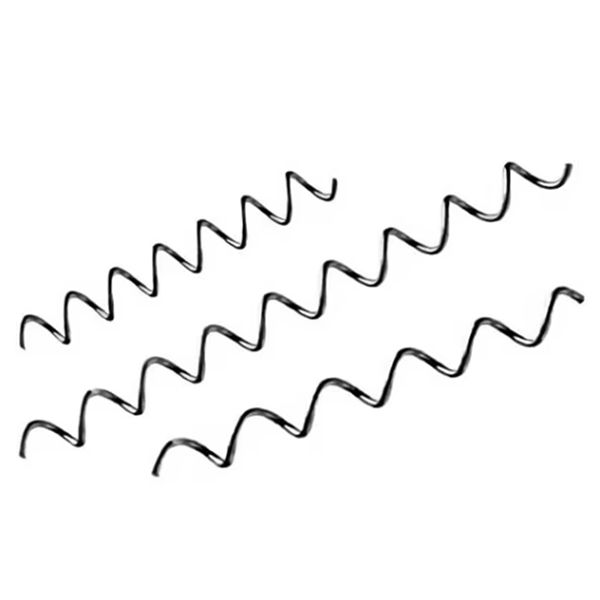

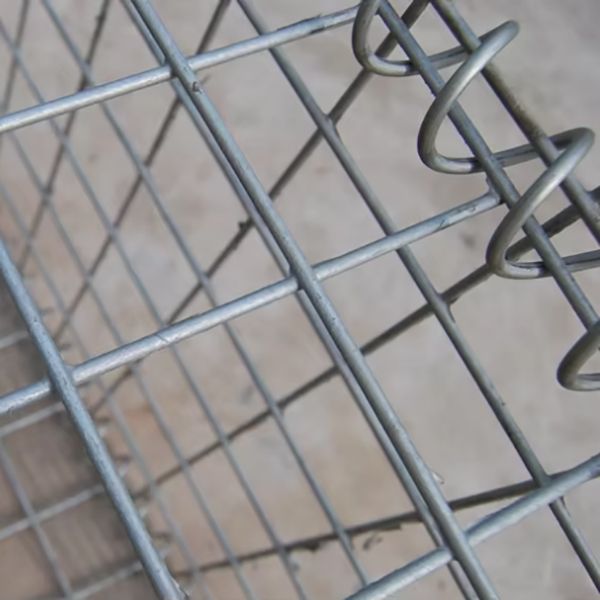

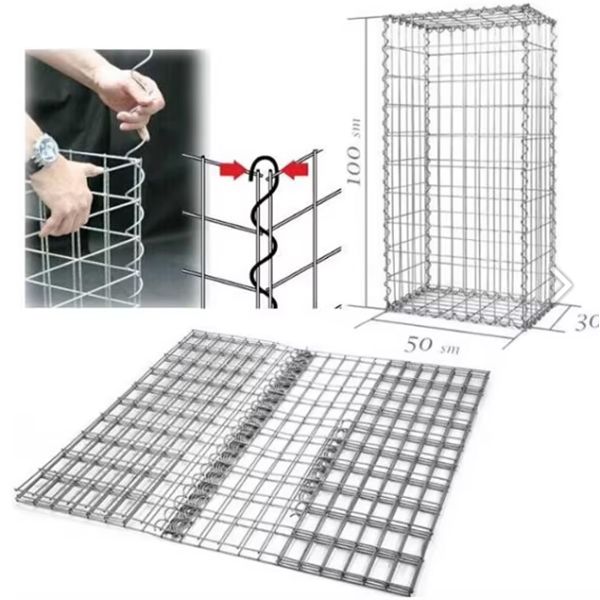

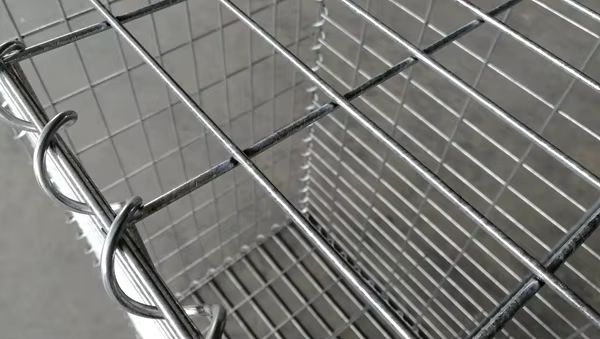

| Spirals * 4.0mm Spirals * Galvanized or Galfan coating * Easy assemble |

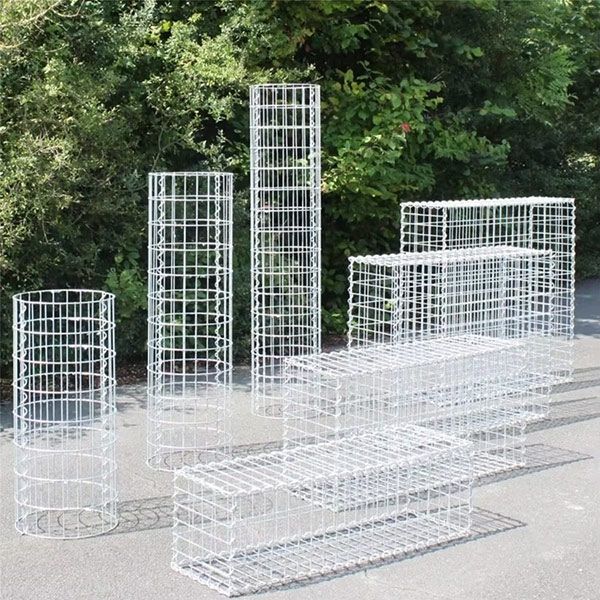

| Complete Gabion * Different shape square or round, etc. * Different size * Economical and Beautiful |
Main Features
 | Hot-dipped Galvanized Wire * Galvanized before welding * Cheaper * Wire is smooth and shinning |
 | Galfan Wire * High zinc >200g * Economical * long life time >8-10years |
 | Heavy Galvanized * Galvanized after welding * Top Quality * Zinc>300g * Longest life time >10-20year |
Advantage
a) Easy to handle and install.
b) High Tensile and anti-Impact capability.
c) Long Life , regular use.
d) can fill with sand ,stone ,cement.
General & Dimension
| ||
Gabion Cage Size | Wire Diameter (mm) | Mesh Opening Size (mm) |
Gabion 100X30X30 | 3.5, 4.0, 4.5, 5.0 | 50X50, 50X100, 75X75, 100X100 |
Gabion 100X50X30 | 3.5, 4.0, 4.5, 5.0 | 50X50, 50X100, 75X75, 100X100 |
Gabion 100X80X30 | 3.5, 4.0, 4.5, 5.0 | 50X50, 50X100, 75X75, 100X100 |
Gabion 100X50X50 | 3.5, 4.0, 4.5, 5.0 | 50X50, 50X100, 75X75, 100X100 |
Gabion 100X80X50 | 3.5, 4.0, 4.5, 5.0 | 50X50, 50X100, 75X75, 100X100 |
Gabion 100X100X50 | 3.5, 4.0, 4.5, 5.0 | 50X50, 50X100, 75X75, 100X100 |
Gabion 100X100X100 | 3.5, 4.0, 4.5, 5.0 | 50X50, 50X100, 75X75, 100X100 |
Gabion 200X100X100 | 3.5, 4.0, 4.5, 5.0 | 50X50, 50X100, 75X75, 100X100 |
PS: Different Quality can be made as your requirment | ||
Welded gabion box is widely used in retaining wall structures, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are quicker and simpler to install than woven mesh gabions.

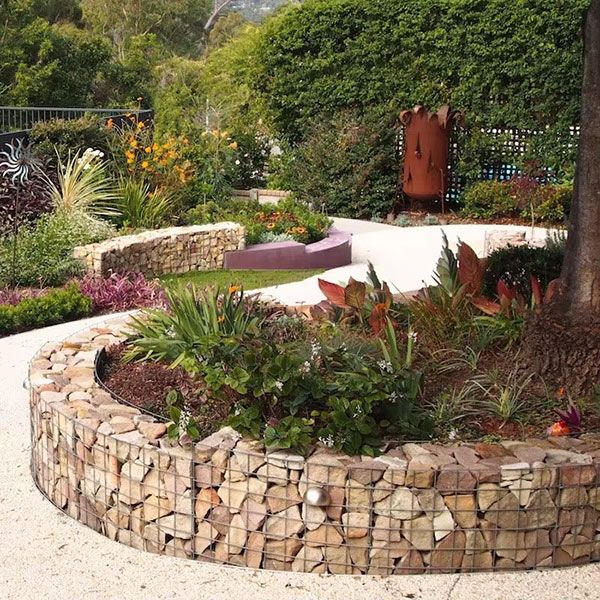

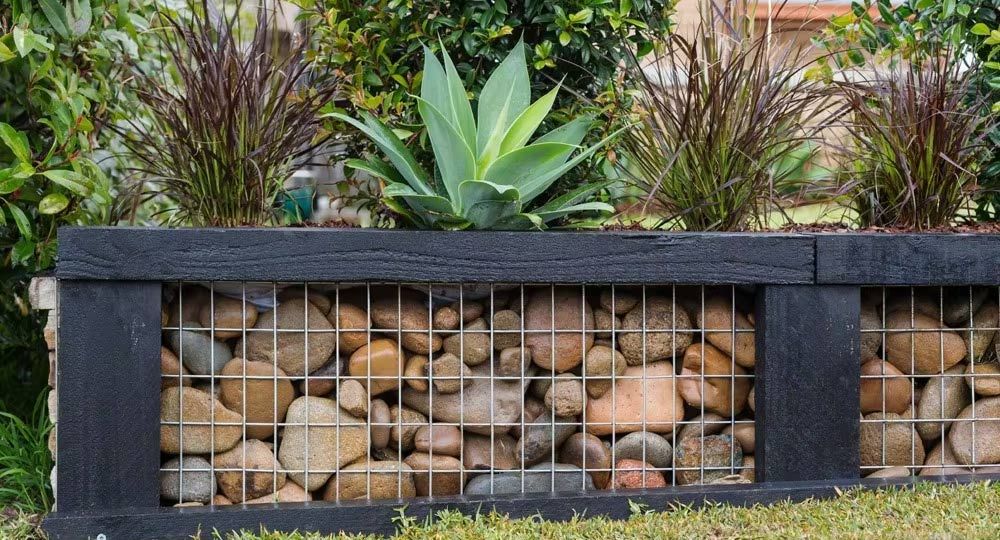

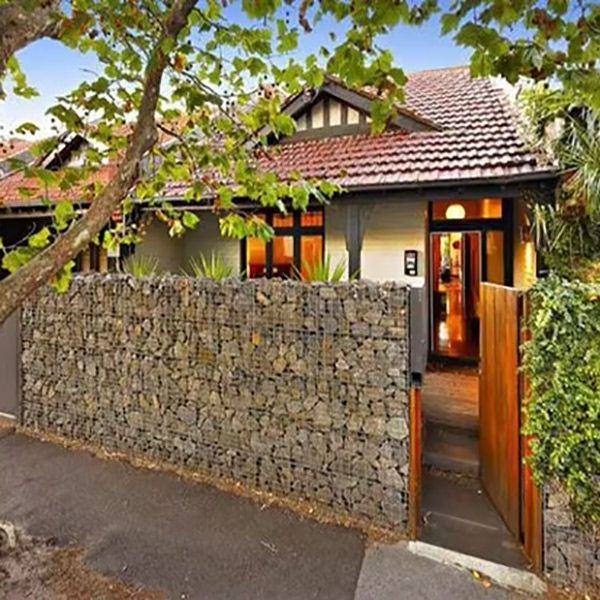

In more applications, the welded garden gabion structure can be made into different sizes and shapes for decoration applications. They can be made into gabion pot, staircase, table and bench, postbox. It can also be used to form particular landscapes, such as waterfall, fireplace and decorative wall.
Product name | Welded gabion |
Delivery Time | 22-30 days |
Hole Shape | Square |
Wire Gauge | 3.5-5.0mm |
Processing Service | Welding |
Surface treatment | Galvanised |
Packaging | compaction and bundle or in pallet |
Wire Diameter | 3.0mm/3.5mm/4.0mm/4.5mm/5.0mm |

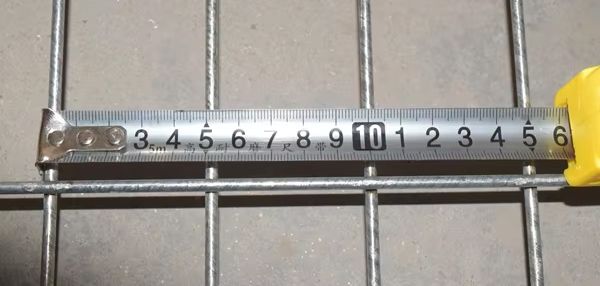

Opening | 50*50/75*75/100*100mm |
Cage Dimension | 1*0.3*0.3m/1*0.5*0.5m/1*1*0.5m/1*1*1m/2*1*1m |
Material | Galvanized Iron Wire |
